I wanted to use a BusyTag Spotify Widget with my Mac. Problem: it was originally coded to work on Windows. So I fixed that, and ran into some interesting bugs along the way.
What It Does
The widget:
- Grabs currently playing track info from Spotify’s API

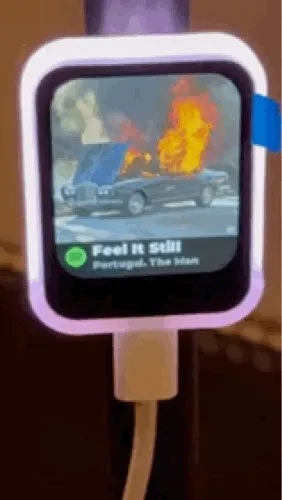

- Shows album art, track name, and artist on the BusyTag screen
- Pulls colors from the album art to set the LED colors
- Updates whenever the track changes
The Windows Problem
Original version only worked on Windows. It assumed drive letters (D:\, E:\, etc.) for accessing the BusyTag, which mounts as a USB device.
The core idea was good, but macOS doesn’t use drive letters. Needed to fix that.
Making It Work on macOS
Volume Paths Are Different
On macOS, USB devices mount at /Volumes/<NAME> instead of drive letters. Added platform detection:
- macOS/Linux: Defaults to
/Volumes/NO NAME(you can override) - Windows: Asks for drive letter and builds the path
Python’s os.path made most of this straightforward. Tested it on macOS and it works.
The Intermittent Bug
Got the platform stuff working, but then hit a weird issue: config file would write, but the BusyTag wouldn’t always update. Sometimes it worked. Sometimes it didn’t.
Intermittent bugs are the worst.
The problem: File buffering.
Python doesn’t immediately flush writes to disk. On a regular hard drive, you don’t notice. On a USB device that’s actively reading its config file? Timing matters.
The fix:
with open(config_path, 'w') as f:
json.dump(config_data, f, indent=2)
f.flush()
os.fsync(f.fileno())flush() tells Python to write the buffer. fsync() tells the OS to actually commit it to the device. Now the BusyTag sees updates immediately.
No remounting needed. Just proper file synchronization.
LED Colors That Match the Album
Once things were stable, I wanted to make it more interesting: auto-set the BusyTag LEDs to match the album art.
Picking a Color
Album art has lots of colors. Which one do you pick?
- Dominant: Most common color
- Vibrant: Most saturated/eye-catching
- Complementary: Matches the dominant tones
- Bright: Brightest available
I built it to support different modes. Default is “vibrant” because it looks the coolest.
How It Works
- Download album art from Spotify
- Analyze using HSV color space
- Find pixels matching the mode criteria
- Average those colors
- Write to BusyTag config
For vibrant mode, it looks for high saturation and moderate brightness. Avoids muddy colors and washed-out ones.
Config Format Gotcha
Took me a few tries to get the config structure right. BusyTag needs:
{
"solid_color": {
"color": "#FF5733"
}
}Made some reference configs, did trial and error, got it working. Now the LEDs pulse with colors from each album.
What I Ended Up With
Works on macOS now. Updates reliably. LEDs shift from deep blues for jazz albums to vibrant reds for rock. It’s oddly satisfying to watch.
(Should still work on Windows too - I kept the original logic intact - but I didn’t test it.)
The Stack
- Python 3.6+
- Pillow (image processing and color extraction)
- Spotify Web API (track info)
- OAuth 2.0 (authentication)
- HSV color space (color picking)
What I Learned
Platform assumptions are everywhere. Simple path handling can hide platform-specific quirks.
File buffering matters for USB devices. You need explicit fsync() calls. USB doesn’t behave like a regular filesystem.
Picking colors from images is harder than it looks. There’s no single “right” answer - it depends what you’re going for.
Config formats are finicky. Always validate against the actual device behavior, not what you think it should be.
UPDATE: The Animated GIF Experiment
After getting the LED colors working, I thought it would be cool to capture animated GIFs of the album transitions - basically showing the BusyTag display updating as tracks change.
Finding Inspiration
The original project had a feature branch with some canvas API experiments. Not documented in the main README, but it was there. Gave me some ideas about how to approach programmatic screen capture from the BusyTag.
The Canvas API Rabbit Hole
The BusyTag has an undocumented canvas API. Not in the official docs, but it exists. You can programmatically read what’s currently on the screen.
I built out a system using gifsicle to:
- Capture the display state before/during/after track changes
- Stitch them into smooth animated GIFs
- Save them as a visual log of what was playing
Got it working. Generated some test GIFs. They looked decent.
Why I Shelved It
The implementation worked, but it didn’t feel worth keeping:
Timing is finicky. USB refresh rates aren’t consistent. Sometimes you’d capture mid-transition, sometimes you’d miss frames entirely. Getting smooth animations required polling the device constantly, which felt excessive.
The API is undocumented for a reason. No guarantees it’ll keep working. Building a feature on top of something that could change or break without notice isn’t great for long-term maintenance.
The payoff wasn’t there. Cool to look at once, but not actually useful. The static display updates work fine. Animated GIFs were mostly solving a problem I didn’t have.
So I pulled the code out. Maybe I’ll revisit it if the canvas API gets officially documented, but for now, it’s shelved.
The core widget works. That’s enough.
Links
Original source: busy-tag/Busy_Tag_Spotify_Widget
My fork (macOS support + LED colors): keif/Busy_Tag_Spotify_Widget
